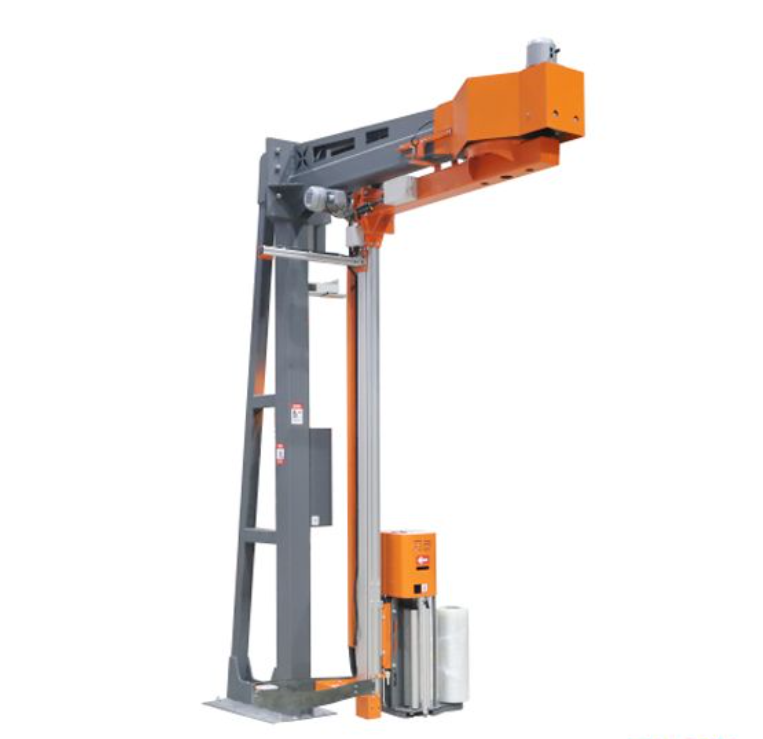

Rotary arm stretch wrapper RA-1

Rotary arm stretch wrapper RA-1 is designed for industrial applications that require secure and efficient packaging of unstable loads. This innovative machine utilizes a rotating arm mechanism that wraps the load while it remains stationary on the floor, ensuring maximum stability during the process. Engineered with a focus on operational safety and reliability, the RA-1 minimizes the risk of product displacement even when handling extremely tall, light, or heavy loads. Its design enables direct placement of the pallet without the need for ramps or specialized loading equipment, which translates to less installation space and greater flexibility in facility layouts. The robust construction, featuring a durable frame and high-performance components, supports a load capacity that is virtually unlimited in terms of weight, making it an ideal solution for various industrial packaging needs. The machine’s integrated PCB control system and slewing bearing drive further enhance its operational efficiency by providing precise control over the wrapping cycle. Overall, this corporate-grade solution meets the stringent requirements of enterprise-level operations, offering a reliable, safe, and efficient method to secure palletized goods in high-volume production environments.

Why buy a Rotary arm stretch wrapper RA-1

• Boost operational efficiency: With high-speed wrapping cycles (25-30 loads per hour), this machine significantly increases throughput while reducing labor costs.

• Ensure superior load security: Its design allows direct floor placement, keeping unstable, tall, and heavy loads stationary to minimize damage during wrapping.

• Save space and simplify installation: The compact design eliminates the need for a turntable or ramps, reducing the required installation area and facilitating quick integration into existing lines.

• Enhance safety and reduce downtime: Advanced sensor monitoring, an emergency stop function, and anti-collision features protect both personnel and products, ensuring uninterrupted production.

• Achieve excellent ROI: Lower maintenance requirements, reduced film waste through precise adjustments, and robust performance deliver a faster payback period and long-term cost savings.

• Future-proof your operations: The intelligent PCB control system and durable construction provide flexibility and reliability, making it a strategic investment that adapts to evolving industrial demands.

• Manual wrapping typically requires approximately 5-10 minutes per pallet, depending on operator efficiency and load complexity.

• The rotary arm stretch wrapper RA-1 can wrap between 25-30 loads per hour—translating to roughly 2-3 minutes per pallet.

• This efficiency gain means companies can potentially save around 50% or more in wrapping cycle time compared to manual operations.

• For high-volume operations, this substantial time saving not only increases throughput but also reduces labor costs and minimizes production downtime.

Technical Specifications of Rotary Arm Stretch Wrapper

The technical design of the rotary arm stretch wrapper RA-1 reflects advanced engineering principles tailored for industrial packaging. With dimensions of 2.68 x 1.1 x 3.1 meters and a robust machine weight of 600KG, this system is built to deliver consistent performance under demanding conditions. The RA-1 is capable of wrapping between 25-30 loads per hour, accommodating pallets up to 1.2 x 1.2 meters in size and achieving a maximum wrapping height of 2000mm. In addition, the machine utilizes a standard film width of 500mm and supports a film roll diameter of 250mm, ensuring a high degree of wrapping precision and material efficiency. Key components such as the integrated PCB control system, the robust slewing bearing drive, and the durable rotary drive motor are selected to meet the highest industrial standards. These technical attributes not only facilitate rapid adjustments to suit a variety of pallet dimensions and load types but also ensure that the system operates with high precision. Overall, the RA-1’s design and technical specifications provide a dependable, high-performance solution ideal for enterprises that demand operational excellence and durability in their packaging processes.

Specs of Rotary Arm Stretch Wrapper

ROI – How rotary arm stretch wrapper RA-1 will Help Make Process More Efficient

Rotary arm stretch wrapper RA-1 delivers substantial improvements in operational efficiency that directly translate into a strong return on investment. By enabling direct floor placement of pallets without the need for ramps or additional loading equipment, the RA-1 minimizes installation space and reduces setup time. This streamlined process lowers labor costs and diminishes the risk of product damage during transport or wrapping, as the load remains stationary throughout the cycle. Its advanced PCB control system and precise slewing bearing drive ensure uniform film application on unstable or irregular loads, thereby reducing film wastage and the need for rework. The machine’s programmable wrapping cycle allows for quick adjustments to match varying load dimensions and production requirements, which boosts throughput and minimizes downtime. Additionally, integrated safety features—such as real-time sensor monitoring and an emergency stop function—contribute to a secure operational environment, reducing the likelihood of costly interruptions. Collectively, these enhancements improve packaging reliability and speed while cutting operational expenses, resulting in a shorter payback period and enhanced ROI. The RA-1 is thus a strategic investment for companies aiming to optimize their packaging processes and achieve significant cost efficiencies over time.

How does Rotary Arm Stretch Wrapper work?

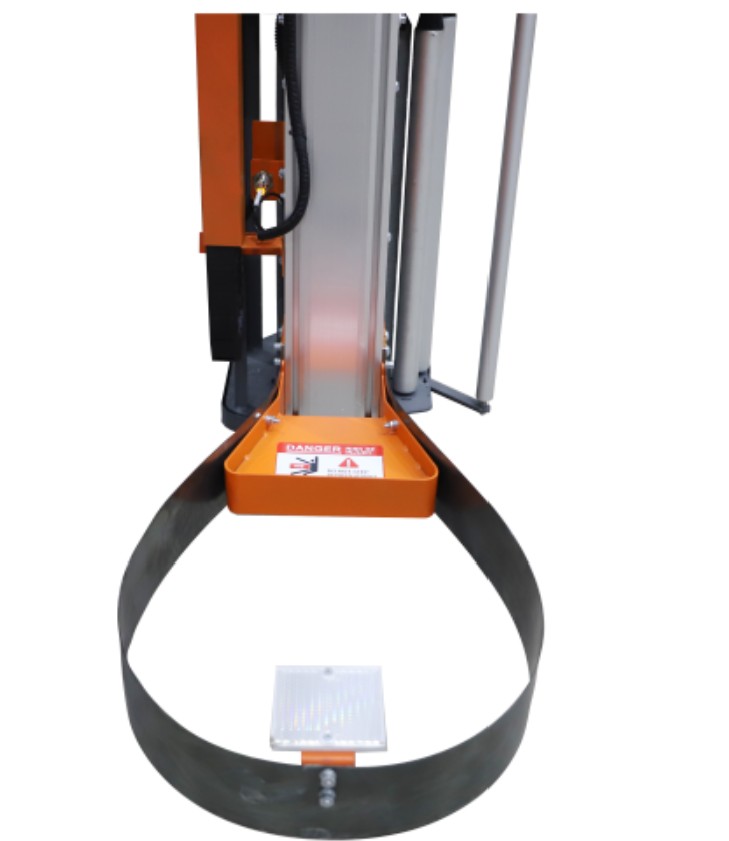

The operational concept of the rotary arm stretch wrapper RA-1 is based on an advanced rotary arm system that efficiently wraps pallet loads without the need to move the load itself. Once a pallet is positioned directly on the floor, the operator initiates the wrapping cycle via an intuitive control panel. The rotary arm then rotates smoothly around the stationary load, applying a pre-stretched film uniformly from the base upward. Throughout the cycle, a film carriage moves vertically in synchronization with the rotating arm, ensuring that the film adheres securely over the entire load. This process eliminates the limitations associated with traditional turntable systems by mitigating issues related to weight constraints and load instability. Additionally, the wrapping cycle is fully programmable, allowing for adjustments in the number of revolutions and the speed of the film carriage to match specific load requirements. With real-time monitoring provided by integrated sensors and an intelligent PCB control system, the RA-1 delivers consistent, precise wrapping performance. This sophisticated operational mechanism ensures that every cycle meets the high standards expected in a corporate environment, providing both efficiency and reliability in high-volume industrial packaging operations.

Key features of Rotary Arm Stretch Wrapper

• Direct Floor Placement: Eliminates the need for a turntable or ramps, reducing installation space and simplifying integration into existing production lines.

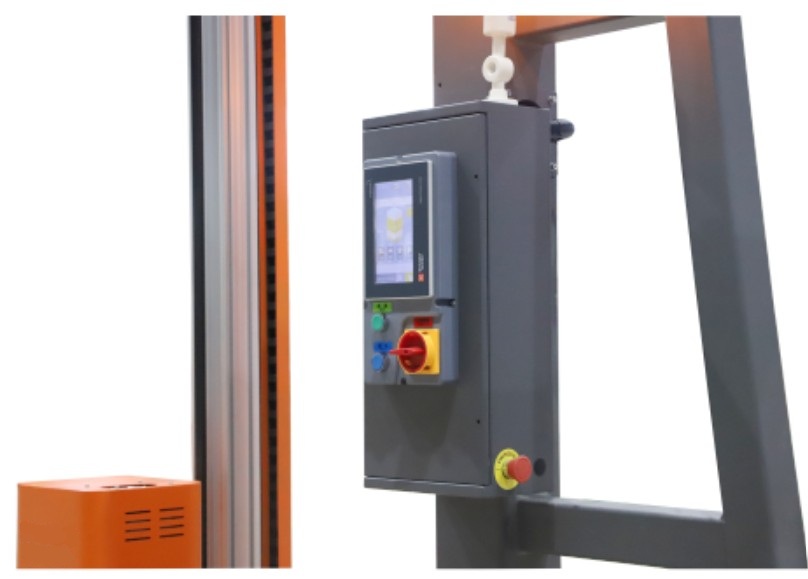

• Advanced PCB Control System: Provides precise, user-friendly adjustments via a touch screen interface for optimal wrapping parameters.

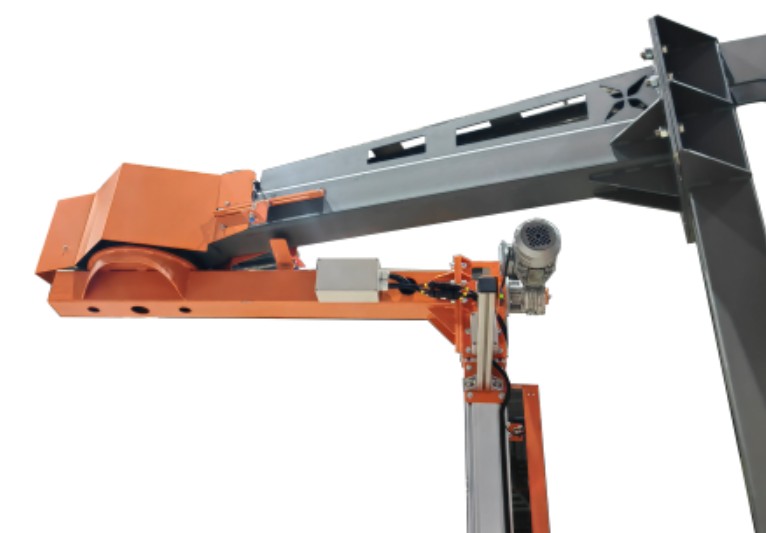

• Slewing Bearing Drive: Ensures a durable, quiet, and maintenance-free operation, enhancing long-term reliability.
• High-Speed Wrapping: Capable of wrapping 25-30 loads per hour, making it ideal for high-volume industrial operations.
• Universal Load Handling: Accommodates unstable, tall, light, or heavy loads without weight limitations, ensuring secure packaging.
• Adjustable Wrapping Parameters: Offers customizable film pre-stretch, wrapping speed, and film carriage movement to suit various load types.
• Comprehensive Safety Features: Equipped with an emergency stop button, collision sensors, and anti-collision alarms to protect both the operator and product.
• Operational Efficiency: Streamlines the packaging process by reducing labor costs, minimizing downtime, and enhancing overall throughput.

Safety Features and Operational Reliability of Rotary Arm Stretch Wrapper

Safety and reliability are integral to the design of the rotary arm stretch wrapper RA-1. The machine is equipped with multiple safety features to protect both personnel and products during operation. A prominent emergency stop button, located on the control panel, immediately halts all activity should an unexpected situation arise. In addition, high-precision sensor systems continuously monitor the movement of the rotary arm and the film carriage. Any deviation or risk of collision triggers an automatic shutdown, thereby preventing potential damage to the equipment or the load. The anti-collision technology incorporated into the RA-1 is particularly important when handling unstable or irregular loads, as it minimizes the risk of accidents. Furthermore, the machine features automated alarms and clear on-screen instructions that guide operators through safe operational procedures. Each safety mechanism—from the slewing bearing drive to the comprehensive sensor array—undergoes rigorous testing to ensure compliance with international industrial safety standards. This robust safety framework not only protects valuable assets but also minimizes downtime, thereby enhancing overall operational efficiency. The RA-1’s commitment to safety and reliability makes it a trusted solution for enterprises that require consistent performance in demanding industrial environments.

Why Use Rotary Arm Stretch Wrapper Instead of Pallet Wrapping Machine?

The rotary arm stretch wrapper, such as the RA-1, is engineered to wrap loads without requiring the pallet to rotate on a turntable. Instead, its innovative design uses a rotary arm that moves around the stationary load, ensuring the load remains secure and stable during the wrapping cycle. This approach is particularly advantageous when dealing with unstable, tall, or heavy loads that might shift or fall off on a conventional pallet wrapping machine. By allowing direct floor placement of the pallet, the rotary arm system eliminates the need for ramps or additional loading equipment, resulting in significantly less installation space. The RA-1’s compact footprint, combined with its advanced PCB control system and robust slewing bearing drive, offers precise control over the wrapping process while maintaining consistent film application. This design not only accommodates non-standard load sizes but also minimizes the risk of product damage due to load movement—a common issue in turntable-based systems. In corporate environments where efficiency and reliability are critical, the rotary arm stretch wrapper delivers a more flexible and effective solution compared to traditional pallet wrapping machines.
The rotary arm stretch wrapper also excels in enhancing operational efficiency and safety. With the pallet remaining stationary, there is a dramatic reduction in the risk of load displacement, which is essential when wrapping extremely light or heavy items. Integrated safety features, including real-time sensor monitoring and an emergency stop function, ensure that any irregularity is promptly addressed, thereby protecting both the product and the operator. The intelligent control system allows operators to easily adjust wrapping parameters to suit varying load configurations, resulting in consistent quality and reduced material wastage. These benefits lead to lower maintenance requirements and fewer production interruptions, directly improving overall throughput and reducing operational costs. In summary, the rotary arm stretch wrapper’s design offers superior flexibility, enhanced safety, and improved productivity, making it a strategic investment over conventional pallet wrapping machines in high-volume industrial packaging environments.

Installation, Maintenance of Rotary Arm Stretch Wrapper

The rotary arm stretch wrapper RA-1 is engineered for ease of installation, minimal maintenance, and long-term durability. Its compact design allows for the direct placement of pallets on the floor, eliminating the need for ramps or specialized loading equipment, which in turn results in significant savings in installation space. This user-friendly setup facilitates rapid integration into existing production lines, making the RA-1 a cost-effective upgrade for industrial packaging systems. The machine’s construction emphasizes durability, featuring a rugged frame and a durable wrapping arm powered by a high-performance slewing bearing drive that ensures quiet and maintenance-free operation over extended periods. Detailed installation guidelines and a comprehensive maintenance manual provide operators with step-by-step instructions to ensure proper setup and regular upkeep. Routine maintenance tasks—such as periodic checks of the film carriage, lubrication of bearings, and cleaning of sensor components—are designed to be straightforward, ensuring that the machine operates at peak efficiency with minimal downtime. The RA-1’s robust design and commitment to long-term performance make it a reliable choice for enterprises that demand continuous, high-volume operation in challenging industrial environments.

Intelligent Control System and Corporate Benefits of Rotary Arm Stretch Wrapper

At the core of the rotary arm stretch wrapper RA-1 is an intelligent control system that integrates advanced PCB technology with a user-friendly touch screen interface. This sophisticated system provides comprehensive operational guidance and precise control over the entire wrapping process. Operators can monitor critical parameters such as wrapping speed, film tension, and load coverage in real time, ensuring that the machine consistently meets high-quality standards. The system is programmed with preset wrap programs, which simplify the operation and enable quick adjustments to suit varying production requirements. In the event of operational anomalies, the control system offers immediate troubleshooting advice, thereby reducing the need for technical intervention and minimizing downtime. The streamlined automation reduces the potential for human error and supports a smooth, efficient workflow. In a corporate setting, these intelligent features translate to significant benefits, including enhanced productivity, improved safety, and reduced operational costs. By combining sophisticated control technology with a robust mechanical design, the RA-1 offers a comprehensive packaging solution that meets the rigorous demands of modern industrial operations, ensuring reliable and efficient performance in high-volume production environments.

Buy Rotary Arm Stretch Wrapper RA-1

The rotary arm stretch wrapper RA-1 offers unmatched performance in improving operational efficiency by providing a secure and reliable method to wrap unstable loads. Its advanced PCB control system, durable wrapping arm driven by a slewing bearing drive, and compact design collectively ensure high productivity with minimal downtime. By keeping the pallet stationary, the RA-1 eliminates risks associated with traditional turntable systems, making it ideal for handling both extremely light and heavy loads while maintaining product integrity. This state-of-the-art solution streamlines your packaging process, reduces maintenance requirements, and enhances overall operational safety. With the ability to adjust parameters to suit varying load types, it maximizes throughput and operational efficiency in any industrial setting. To take advantage of these benefits, click ADD TO CART to secure the rotary arm stretch wrapper RA-1 immediately, or click GET OFFER to receive a personalized offer tailored to your specific operational requirements. This strategic investment supports enterprise-level packaging needs and delivers long-term value by ensuring a more efficient, secure, and productive work environment.
